Y09-301AC-DC 0.1cfm Portable Laser Airborne Particle Counter

Name: Y09301ACDC 01cfm Portable Laser Airborne Particle Counter
Brand: SUJING
Price: 1 USD

Brand Name : SUJING

Model Number : Y09-301

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 800/per month

Delivery Time : 5 work days

Packaging Details : Carton

Name : Y09-301AC-DC 0.1cfm Portable Laser Airborne Particle Counter

Size Channel : 0.3, 0.5, 1, 3, 5, 10 μm

Flow Rate : 2.83L/min

Alarm : ISO14644-1:2015/GMP:2015

Data Storage : 1000 Samples (With PC Software)

Weight : 2.6kg

Contact Now

Y09-301AC-DC 0.1cfm Portable Laser Airborne Particle Counter

The Y09-301AC-DC 0.1cfm Portable Laser Airborne Particle Counter is the industry’s 2.83 LPM 0.3 micron portable designed for continuous use.
The intuitive ICON-driven screens and menus are easy to learn and use, and support multiple languages.

They can store up to 1000 records of particle count data from up to 6 particle channels and the configurable recipe database can store up to 50 recipes for sampling and reports. All data can be quickly and reliably transferred to a computer.

The parameter of Y09-301AC-DC particle counter

Outside Dim	236280128 mm³(WideDeepHigh)
Display	4.3inch color screen
Weight	2.6kg
Power Source	Li-ion charger ,DC16.8V
Size Channels	0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate	2.83L/min
Light source	Laser Diode
Zero Court	<=10min
Alarm	ISO14644-1:2015/GMP:2015
Coincidence Loss	5%,2000000ps/cf
Operating Time	more than 5.5 hours
output	RS-232 to pc or printer via optional cable
Location Labels	0-999
Data Storage	1000 Samples (With PC Software)
Environmental	10degrees celsius-30degrees celsius ; Humidity: 20%-75% RH ;Atmosphere Pressure 86Kpa-106Kpa
Standard feathure	suitcase ;charger;sampling head;line of communication;communication software ;Automatic Purifier
Optional component	External printer

Application of handheld particle counter

Particle contamination monitoring
Installed filter leak testing
Cleanroom certification

Y09-301AC-DC 0.1cfm Portable Laser Airborne Particle Counter

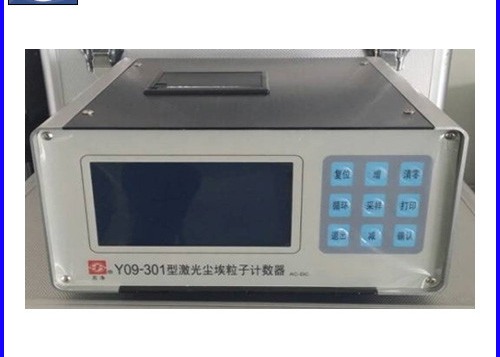

Y09-301AC-DC 0.1cfm Portable Laser Airborne Particle Counter Images
