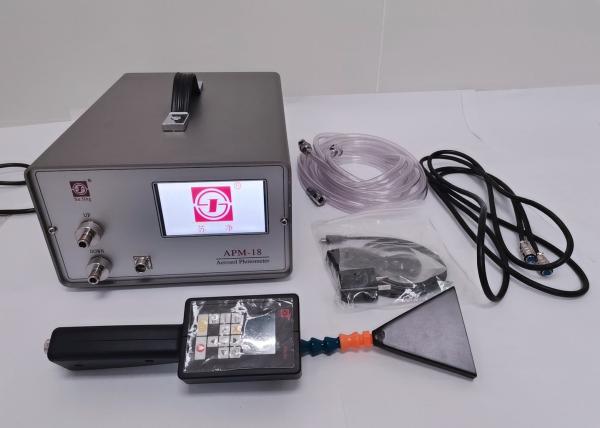

Aerosol Photometer For Cleanroom Biological Cabinet Leak Detection

Name: Aerosol Photometer For Cleanroom Biological Cabinet Leak Detection
Brand: SUJING
Price: 1 USD

Brand Name : SUJING

Model Number : APM-18

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 800/per month

Delivery Time : 5 work days

Packaging Details : Carton

Name : Aerosol Photometer For Cleanroom Biological Cabinet Leak Detection

Reagent Settings : PAO-4, DOP, Ondina, Mineral Oil, Paraffin

Weight : Weight

Output : Wireless printer, USB interface

Standards compliance : NSF 49, IEST, ISO-14644

Light Source : Solid State, rated for life of instrument

Contact Now

Aerosol Photometer For Cleanroom Biological Cabinet Leak Detection

The APM-18 is the most highly advanced aerosol photometer available today. The APM-18 utilizes a high resolution graphics display providing an easy to read panel display. The extremely simple menu-driven software system utilizes command prompts to inform the user of each setup process. The powerful microprocessor provides control of numerous functions, not available on any other aerosol photometer. APM-18 plug and play probe is light weight and features remotecontrol of alarm options (includes a visual, audible, and the NEWINNOVATIVE VIBRATING alarm). The machined aluminum housing and heavy duty metal connector to the main unit provides years of trouble-free use. FEATURES: High Resolution Graphical Display Menu-Driven Software Functions Automatic Zeroing and Ranging Proven LED Light Source (Light Chamber)Reference Settings for Multiple Testing Reagents Retains Reference Settings When Powered Off Displays Upstream Ref. / Concentration Setting Stable at Low Concentrations of Aerosol (≥ 10ug/l)Probe Selectable Audible, Visual, Vibrating Alarms Plug and Play Probe – 11 foot length USB Interface.Lightweight Heavy Duty Black Aluminum Case Accepts Worldwide Operating Voltages Optional Heavy Duty Shipping / Carrying Case

Features and Benefits of aerosol photometer

long life laser light source;
high precision photoelectric multiplier tube detection;
can set PAO, DOP and other types of aerosols;
equipped with a dedicated handheld device to achieve control, display and sampling function;
large capacity data storage, real-time data storage;
more than the setting alarm sound and light alarm;
can be obtained by U disk or thermal printer to print historical data;
can print leakage rate and other monitoring data in real time;
through the special software, the sampling data can be imported into PC;
automatic fault detection.

Application of digital aerosol photometer

leakage detection of clean room
VLF bench
biosafety cabinet
glove box
HEPA vacuum cleaner
HVAC system
HEPA filter
negative pressure filtering system
operating theatre
nuclear filter system
collection protect filter

APM-18 photometer Specifications
Dynamic Range	Up to 600 micrograms per liter
Reagent Settings	PAO-4, DOP, Ondina, Mineral Oil, Paraffin
Auto Zero	Automatically establishes zero reading at startup
Sensitivity	1% of readings ≥0.01% to 100%
Repeatability	0.5% of readings ≥0.01% to 100%
Flow Control	Pulse Width Modulation (PWM) control ensures sampling rate of 1cfm (28.3lpm) +/- 10% in all applications.
Light Source	Solid State, rated for life of instrument
Reporting	Continuous, Summary, and Monitoring modes
Alarm	User selectable audible, visual, and vibratory alarms notify the user when the user defined set point is exceeded.
Size	260 (W)X160(H)X360(D)
Weight	10Kg
Output	Wireless printer, USB interface
Power	220VAC, 50/60HZ
Standards compliance	NSF 49, IEST, ISO-14644

Aerosol Photometer For Cleanroom Biological Cabinet Leak Detection
